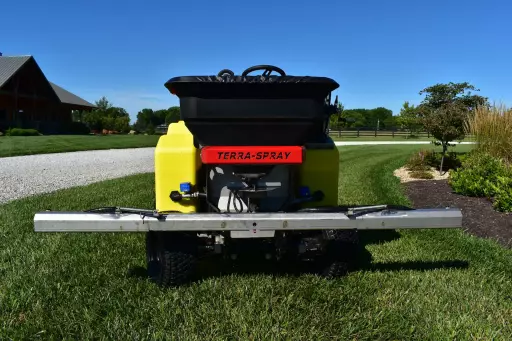

The revolutionary all-wheel drive, all-wheel steer Terra-Spray lawn applicator - all three models.

Terra-Spray: The Ultimate Turf Applicator Family

Three models. Unmatched performance. Industry-leading safety and stability.

Safety, Stability, and Unrivaled Productivity

The Terra-Spray is the first production applicator to feature all-wheel drive and all-wheel steering, delivering unmatched hill-side stability and operator safety. Designed to eliminate weight and balance issues, the Terra-Spray allows operators to take on challenging slopes fully loaded—boosting productivity and reducing reload trips.

Explore the Terra-Spray family:

TS-300: Compact 36” model with unmatched maneuverability.
TS-3046: A 46" wide variant of the TS-300, it features even better hill-side stability where compact size isn't an issue.
TS-500 / TS-700: Larger models with increased capacity and efficiency for bigger jobs.

Meet the Terra-Spray Lineup

TS-300
Key Highlights
- 36” width for compact spaces.
- 30-gallon liquid capacity and 220-lb hopper—the highest capacity in its class.
- Patent-pending slide-out tanks for superior maintenance accessibility.
Discover More About the TS 300
TS-3046

Key Highlights
A wider, even more stable version of the TS-300, the TS-3046 has a 46" wide chassis and same revolutionary features as the rest of the Terra-Spray product family.
Learn More about the TS-3046
TS-500 / TS-700
Key Highlights
- TS-500: 50-gallon capacity with 10’ spray boom.
- TS-700: 70-gallon capacity with 10’ spray boom.
- Robust performance and industry-leading stability.
- Ideal for larger turf applications.
Explore Further the TS 500/700

Features Across the Terra-Spray Lineup

Click or tap the dots on the image to view features of the entire Terra-Spray lineup.

A Terra-Spray spreader/sprayer with features highlighted.

Choose the Model that Fits Your Needs

The TERRA-SPRAY is offered in four models, the TS-300, TS-3046, TS-500, and TS-700.

FEATURE	TS-300	TS-3046	TS-500	TS-700
Liquid Capacity	30 Gallons	30 Gallons	50 Gallons	70 Gallons
Hopper Capacity	220 lbs.	220 lbs.	220 lbs.	220 lbs.
Fert Trays	2 @ 50 lbs.	2 @ 50 lbs.	2 @ 50 lbs.	2 @ 50 lbs.
Spray Boom	8'	8'	10'	10'
Spray Pump	5.3 GPM	5.3 GPM	5.3 GPM	5.3 GPM
Optional Pump	7, 10, 14, or 22 GPM with alternator
Hopper Vibrator	Standard on all models.
Engine	Honda IGX 700	Honda IGX 700	Honda IGX 700	Honda IGX 700
Transmission	All-wheel drive, hydro gear 21CC with 4 wheel motors. Direct drive engine to transmission. No belts.
Steering	All hydraulic steering with orbital and 2 steering cylinders.
Front Tires	18×8.5–10	18×8.5–10	18×8.5–10	18×8.5–10
Rear Tires	18×8.5–10	18×8.5–10	22×10–10	22×10–10
Width	36"	46"	47"	54"
Length	68"	68"	72"	76"
Weight	1025 lbs.	TBD	1130 lbs.	1295 lbs.

Available Options

Enhance Your Terra-Spray

Accu-Trim

Upgrade your Terra-Spray lawn sprayer with the revolutionary Accu-Trim System, designed for precision, convenience, and efficiency. This patented technology introduces a game-changing feature: the electronic adjustment of the entire hopper motor, allowing you to fine-tune hopper dispersal patterns by shifting side to side. Say goodbye to manual adjustments and hard-to-maintain cables.
Foam Marker

0.08 Gallon foam marker for additional accuracy and precision.
14 GPM Zeus Pump

Upgrade your Terra-Spray with an optional 14 GPM Zeus pump! Installation of this pump also includes the installation of a 70 A alternator.
22 GPM ACE Pump

Upgrade your Terra-Spray with our highest capacity pump - a 22 GPM ACE pump.
Auxiliary Tank

7 Gallon ISO tank with 5 GPM electric pump and coil hose.
Dual Button Drive Lever

Speed up fertilizer and spray operations with the dual-button drive lever. One button activates the hopper, while the other engages the spray pump—giving you precise, on-the-go control at your fingertips.

In Action

The Terra-Spray Lineup in Action

The Terra-Spray lineup are the first production applicators that feature all-wheel drive and all-wheel steering for unprecedented hill side stability. The Terra-Spray family alleviates weight and balance issues by allowing operators to take on hills fully loaded that would not be possible on conventional zero turn units. This increases productivity by eliminating trips back to reload.

Ready to Find the Perfect Terra-Spray Model for Your Needs?

Discover the TS-300

Reveal the TS-3046

Explore the TS-500 / TS-700

Request a Demo

Join The Future of Turf Managment

For industry-leading performance, stability, and precision, trust the Terra-Equipment family.

Explore our models today and elevate your operations.
